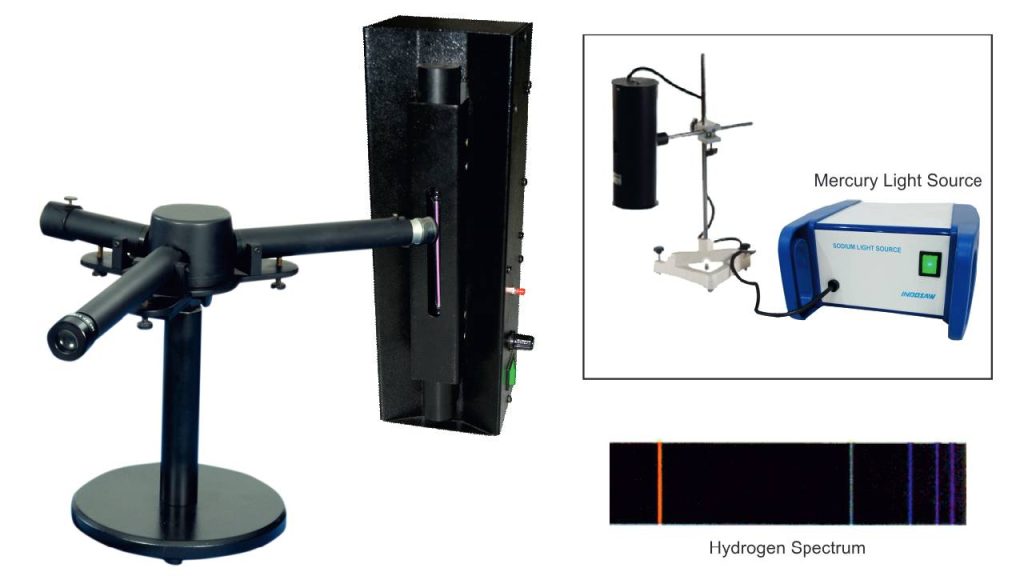

Balmer Series and Emission Spectra
Item Code : SK071
Principle and Working:
The Bunsen-Kirchhoff spectroscope is ideal for the observation and measurement of emission and absorption spectra.
In the present setup, the Balmer series of hydrogen and the wavelengths of unknown gases can be studied using this spectroscope. The scale tube of the spectrometer is initially calibrated using a mercury light source so that the marked numbers on the scale correspond to specific wavelengths of light. Subsequently, the emission spectra of hydrogen and nitrogen can be investigated.
Read More
- Direct reading spectroscope with adjustable three arms.
- Self Centring Slit of SS material.
- Hydrogen atom filled spectrum tube (USA make).
- High Voltage spectrum tube (5kV) with safety door and thermal switch.
- Mercury light source with output power 125 W.
- Observing the Balmer series of hydrogen using Bunsenkirchoff spectroscope.
- Qualitative investigation of emission spectra.
- Spectroscope : Observation tube moveable, with locking screw, slidable eyepiece, Objective 18 mm / 160 mm, Symmetrical slit Slit tube, Objective 18 mm / 160 mm, Stationary Scale tube, 200-division scale, Eyepiece 18 mm aperture, 90 mm Fl, Prism Flint glass (60°), Dispersion C-F 2°, Height 25 cm (approx.).
- Spectrum Tube power supply : Input 220V, 50 Hz AC, Output 0- 5000V , power supply Overload 2mA (Max.) Spring loaded socket.
- Spectrum Tube : Hydrogen Gas, Violet 420, 440nm, Blue 490 nm, Red 670 nm.
| S.No. | Item Name | SK071 |
|---|---|---|
| 1 | Spectroscope- Bunsen Type | 1 |
| 2 | Spectrum Tube (Hydrogen) | 1 |
| 3 | Spectrum Tube (Nitrogen) | 1 |
| 4 | Spectrum Tube Power Supply | 1 |
| 5 | Mercury Light housing | 1 |
| 6 | Stand Base (A Shaped) | 1 |
| 7 | Power Supply for Mercury Light | 1 |
| 8 | Boss Head Square (Universal Clamp) | 1 |
| 9 | Clamping Rod | 1 |
| 10 | Stand Rod | 1 |
| 11 | Mercury Bulb (125 W) | 1 |
| 12 | Power Cord (Main Lead) | 2 |
| 13 | Table Lamp | 1 |
