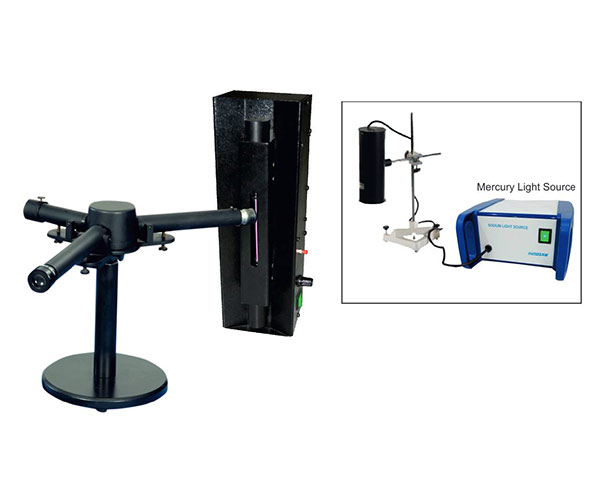

Balmer Series and Rydberg Constant
Item Code : SK043
Principle and Working:
The Balmer’s series used hydrogen discharge tube to emit a series of lines in the visible part of the spectrum. Which extends into the ultraviolet range. Rydberg generalized Balmer’s formula in terms of wave numbers to describe the wavelengths of spectral lines of various chemical elements. For hydrogen, Balmer’s formula is a special case of Rydberg’s formula, given by:
where
n is an integer (3, 4, 5, … up to infinity)
R is the Rydberg constant (R = 4B, where B is Balmer’s constant).
Read More
- Hydrogen atom filled spectrum tube (USA make).
- High Voltage spectrum tube (5kV) with safety door and thermal switch.
- Four Vernier used to remove eccentric error (almost fully).
- Least count 20 sec. for precise measurement.
- Highly stable spectrometer body (weight 8.5 kg approx.)
- To determine the wavelengths of Balmer series in the visible region from hydrogen emission.
- To determine the Rydberg constant.
- Advanced Spectrometer : Main scale : Brass, dia. 175mm, 0 – 360°, 1 MSD 1/3°, Least count : 20 seconds, Base size : Wooden, 450 x 300 x 12mm, Objective : Achromatic lens, F = 178mm, Ø 32mm, Slit : German silver with knurled screw, Reticle : 90° cross etched on glass, Ø 21mm, Eyepiece : 15x, Ramsdens eyepiece, Vernier : Brass, 4 verniers, (L x W) 60 x 48mm, Base : 220mm dia., Aluminium casting.
- Spectrum Tube power supply : Input 220V, 50 Hz AC, Output 0-5000 V, power supply Overload 2mA (Max.) Spring loaded socket.

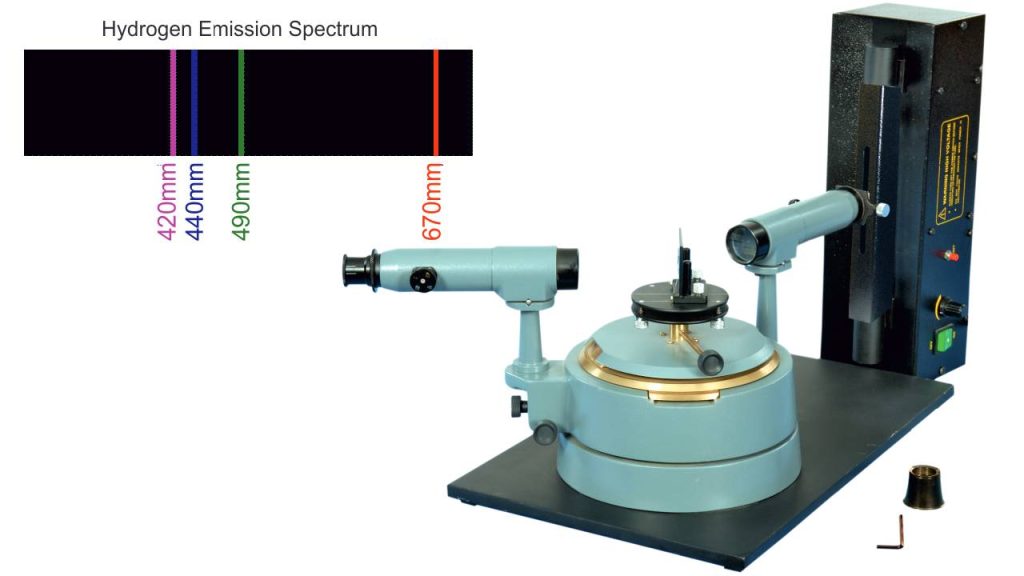

- Spectrum Tube : Hydrogen Gas, Violet 420, 440nm, Blue 490nm, Red 70nm.
- Diffraction Grating : Size 89 x 38 mm, Aperture 16 x 9 mm Rulings 100,300,600 lines/mm.
| S.No. | Item Name | SK043 |
|---|---|---|
| 1 | Wooden Box for prism | 1 |
| 2 | Prism 54 x 54 x 54 mm | 1 |
| 3 | Wooden box for spectrometer | 1 |
| 4 | Allen key 3mm | 1 |
| 5 | Magnifier | 1 |
| 6 | Diffraction grating (100, 300, 600 lines per mm) | 1 |
| 7 | Advanced spectrometer | 1 |
| 8 | Prism Table with Grating and prism clamp | 1 |
| 9 | Spectrum tube power supply | 1 |
| 10 | Spectrum tube (Hydrogen) | 1 |
| 11 | Power Cord (Main Lead) | 1 |
