FIELD LINES AND EQUIPOTENTIAL LINES
Item Code : SK044
Principle and Working:

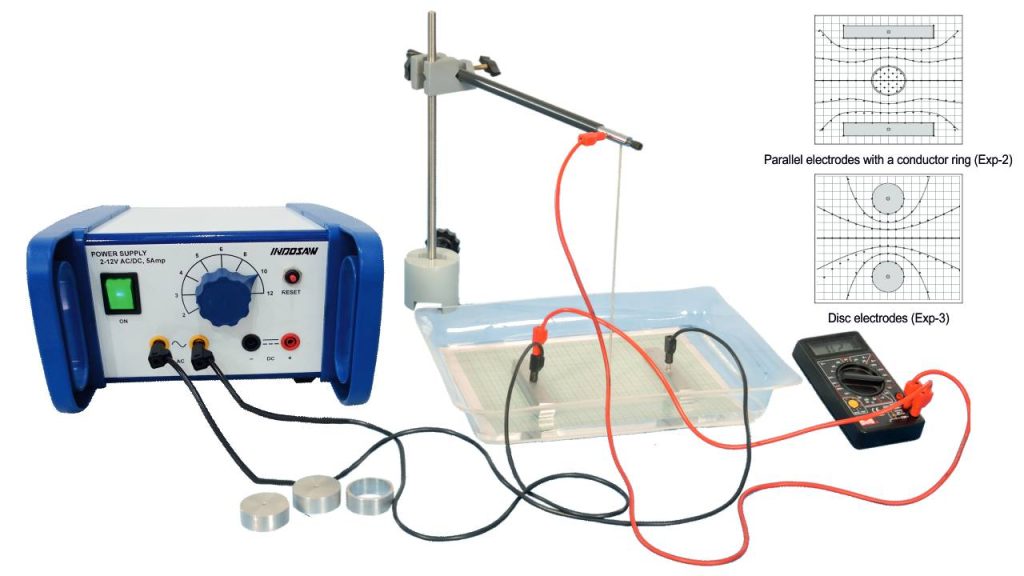

An equipotential line is a set of points in space where each point has the same electric potential. In this setup, a voltage is applied between a pair of electrodes placed in a plastic trough filled with distilled water. The electric potential at different points is measured using a needle connected to a multimeter. These points are then marked on graph paper, aligned with a reference graph placed under the trough.
- 2-12V, 5A, AC/DC power supply with Thermal safety switch and safety sockets.
- Point needle for tracing the field lines through conductive material.
- Different shape of electrodes (bar, disc and ring) to produce different shape of field lines.
- User friendly design and connections.
- To investigate the equipotential lines of electric fields.
- To draw the equipotential lines for bar electrode.
- To draw the equipotential lines for disc electrode.
- To draw the equipotential lines for ring electrode.
- Power Supply : 2-12V AC/DC, 220V, ± 5%, 50Hz AC, Voltage 2,3,4,5,6,8,10 & 12 V AC full wave rectified, unsmoothed & unregulated DC, Overload protection Resettable thermal trip
- Electrode Sets : Bar Electrode 100x15x15mm (L x W x H), Disc Electrode 40x15mm (φxt), Ring Electrode 34x40mm (I.D x O.D).
- Trough : Acrylic, 390x300x50 mm approx. (L x W x H)
| S.No. | Item Name | SK044 |
|---|---|---|
| 1 | Accessory Tray | 1 |
| 2 | Rod with Socket | 1 |
| 3 | Bar Electrode | 2 |
| 4 | Disc Electrode | 2 |
| 5 | Ring Electrode | 1 |
| 6 | Stand Rod | 1 |
| 7 | Graph Paper 1mm & 1cm Sq. | 1 |
| 8 | Plastic Box | 1 |
| 9 | Digital Multi Meter | 1 |
| 10 | Power Supply 2-14V AC/DC 6Amp. | 1 |
| 11 | Power Cord (Main Lead) | 1 |
| 12 | Cylindrical Base | 1 |
| 13 | Flexible Plug Lead 100cm (Black) | 2 |
| 14 | Flexible Plug Lead 100cm (Red) | 2 |
| 15 | Knitting Yarn No. 13 | 1 |
| 16 | Boss Head Square | 1 |
