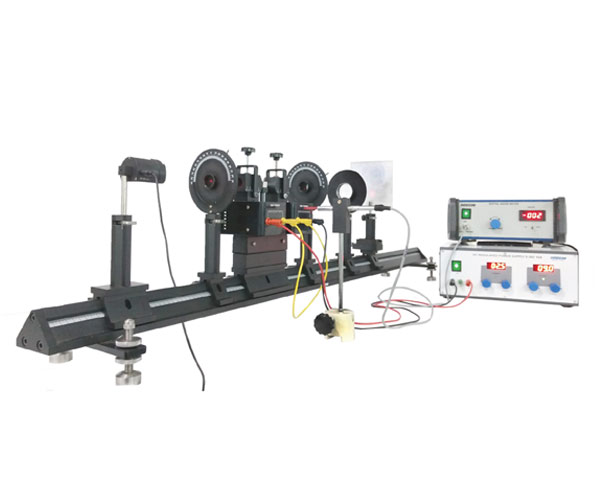

FARADAY EFFECT EXPERIMENT with He-Ne laser
Item Code : SK058
Principle and Working:
If a transparent isotropic material is placed in a strong magnetic field and linearly polarized light is transmitted in the direction of the magnetic field, the plane of polarization of linearly polarized light rotates by an angle.
The angle of rotation (Ø) of plane polarized light is proportional to the length (L), magnetic field (B) and Verdet’s constant (V).
- All electrical connections are made using 4mm safety plugs & sockets.
- Compact & portable electromagnet.
- High current DC power supply with safety features like short circuit protection, over heat protection etc.
- Saddle can hold rod from 8 to 15mm.
- Heavy, rigid and stable Optical bench.
- Height and level adjustment screws
- Analyser/Polayser with 0 ± 90° graduation.
- He-Ne laser with built-in power supply.
- Green diode laser with less power consumption.
- Observing the rotation of the polarization plane when polarized monochromatic light passes through flint glass under influence of a magnetic field.
- Determining Verdet’s constant from the relation between rotation angle and magnetic flux.
- Flint Glass : DEDF glass, size 15x15x15mm.
- Power supply : 0-30V DC, 10A, 3½ Display LED.
- Digital Gauss meter : Range 2KG & 20 KG, Resolution 1G & 10G, Sensor In As.
- Electromagnet coil : 500 T coil, 7Amp (Max.), 18SWG, Cu.
- Electromagnet Core : Ferromagnetic, 40x40mm cross section.
- Optical bench : Length – 1 mtr. with Scale, 4 point levelling. Material Aluminium or MS.
- Transversal slider : 25 – 0 – 25mm, LC 0.01mm.
- Fixed slider : Base width 50mm, Height 115mm.
- Laser : He-Ne Laser (632mm), Power 2 mW, Beam spot 2.5mm, current 4mA ~ 6mA, size 300 x 62 x 82mm.
| S. No. | Item Name | SK058 |
| 1 | Transverse Slider | 1 |
| 2 | Fixed Slider | 3 |
| 3 | Main Slider with U Core | 1 |
| 4 | Fixed Slider Large | 1 |
| 5 | Optical Bench with Levelling | 1 |
| 6 | High Current Safety Wire (black) | 1 |
| 7 | High Current Safety Wire (red) | 1 |
| 8 | Object Screen 15x15cm | 1 |
| 9 | Coil 500 Turns (right) | 1 |
| 10 | Coil 500 Turns (left) | 1 |
| 11 | Probe Holder | 1 |
| 12 | Flint Glass DEDF (15x15x15mm) | 1 |
| 13 | Digital Multimeter 4½ Digits | 1 |
| 14 | Power Supply 40V, 10AMP | 1 |
| 15 | Digital Gaussmeter | 1 |
| 16 | Cylindrical Base | 1 |
| 17 | Polarizer/Analyser | 1 |
| 18 | Pin Hole Photo Detector | 1 |
| 19 | Pole Piece with hole | 2 |
| 20 | Clamp Assembly | 2 |
| 21 | Flexible Plug Lead 100mm (Black) | 1 |
| 22 | Flexible Plug Lead 100mm (Red) | 1 |
| 23 | Flexible Plug Lead 50mm (Yellow) | 1 |
| 24 | Laser He-Ne | 1 |

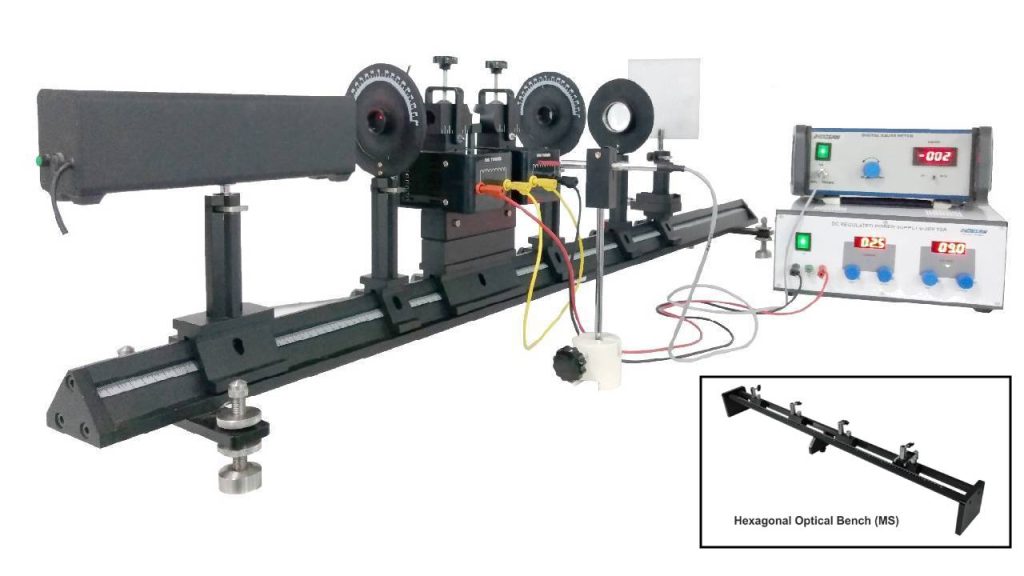

Note : The standard supply is the Hexagonal Optical Bench (MS). To request the Triangle Optical Bench (Aluminium Extrusion),please specify in your request.
