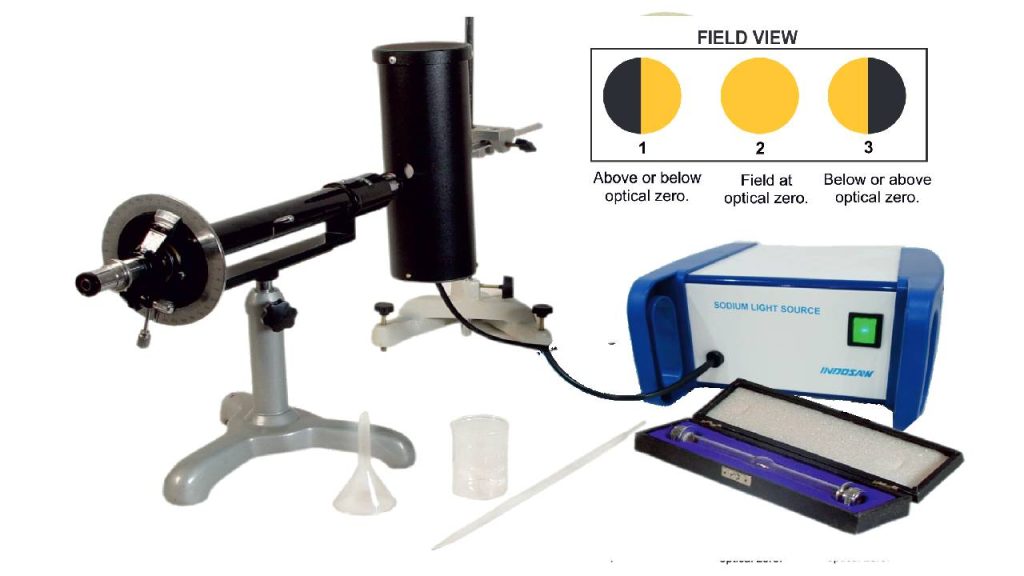

Laurent's Half Shade Polarimeter
Item Code : SK018
Principle and Working:
Laurent’s Half-Shade Polarimeter is an optical instrument used to measure the optical rotation of chiral substances. It improves accuracy with a half-shade plate, which enhances brightness comparison for precise readings. Commonly used in chemistry, pharmaceuticals, and the food industry, it helps determine the concentration and purity of optically active solutions.
- Polarimeter function can be carried out precisely in an economical unit.
- Sturdy metal housing and modular construction.
- Sodium source can be used in vertical & horizontal positions
- Modern and user friendly design.
- Least count 1°
- To study the principle of operation of a Half-shade polarimeter.
- To measure the angle of rotation of sugar solution as a function of sugar concentration.
- Circular scale : 0° – 360°.
- Least count : 1°.
- Vernier Reading : 6 min.
- Dimensions : Dia. 12 mm, length 200mm.
- Lamp house : Mild Steel, 200 x 85mm (LxØ), slit Ø 13mm.
- Lamp power : 20W, input 220V AC.
- Glass rod : 300 x 6mm (L x Ø).
- Pipette : 50ml with 1 mark.
- Funnel : 50mm.
- Beaker : 250ml.
- Dimension : 440 x 120 x 305mm (L x W x H).
- Weight : 3.5kg (approx).
| S.No. | Item Name | Quantity |
|---|---|---|
| 1 | Polarimeter Laurent’s half shade, glass tubes | 1 |
| 2 | Polarimeter Tube | 1 |
| 3 | Polarimeter Stand | 1 |
| 4 | Polarimeter | 1 |
| 5 | Beaker 250mm | 1 |
| 6 | Glass rod | 1 |
| 7 | Funnel 50mm | 1 |
| 8 | Pipette 50ml | 1 |
| 9 | Sodium light source | 1 |
| 10 | Power Cord (Main Lead) | 1 |
| 11 | Power supply for Sodium Light | 1 |
| 12 | Stand Base (A Shaped) | 1 |
| 13 | Sodium Bulb (35W) | 1 |
| 14 | Boss Head Square (Universal Clamp) | 1 |
| 15 | Clamping Rod | 1 |
| 16 | Stand Rod | 1 |
