POLARIZATION OF LIGHT BY HALF-WAVE PLATE
Item Code : SK073
Principle and Working:

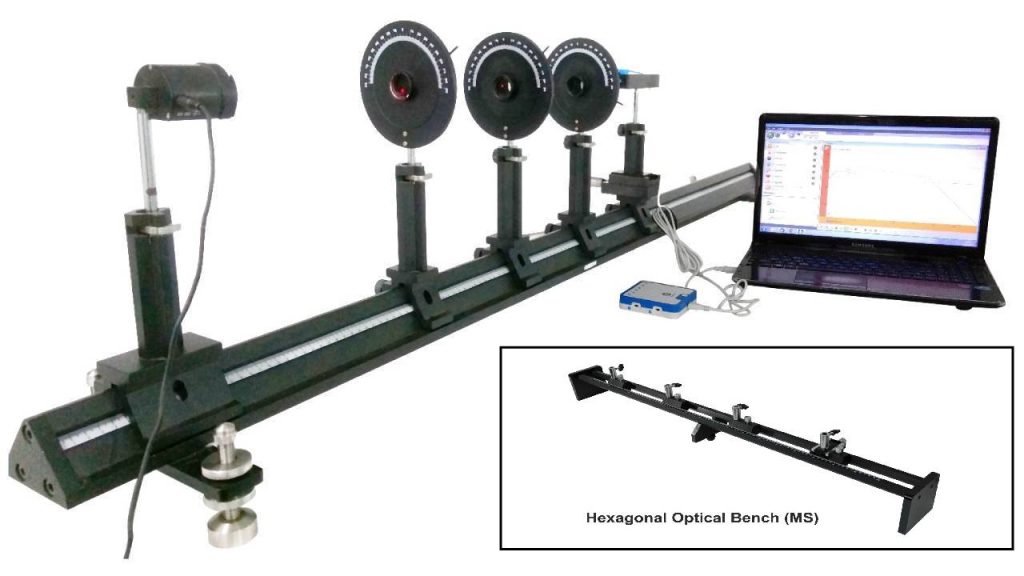

In polarization of light by half-wave plate setup, the diode laser light is first polarized and then passes through a half-wave plate (λ/2), which rotates the polarization plane without changing intensity. The effect can be analyzed over a -90° to +90° range. The prism’s refractive index (μ) relates to its angle (α) as δ = θ⁻¹(α).
- Diode laser with output power 3 – 5 mW.
- Saddle can hold rod from 8 to 15mm
- Precise measurement using Data logger & light sensor with Graph analyser software.
- Heavy, rigid and stable Optical bench.
- Height and level adjustment screws.
- Data logger can collect 1,00,000 samples per sec.
- To measure the light intensity of plane polarised light as a function of the analyzer position.
- To study the polarization of light by half wave plate.
- Produce plane polarised light using half wave plate.
- Light sensor : Range 0 – 600 Lux , resolution 0.15 Lux Range 0 – 6000 Lux , resolution 1.5 Lux Range 0 – 150K Lux , resolution 37 Lux .
- Accuracy : + 4% over entire range.
- Data logger : Up to 100K SPS, memory capacity 800K sample, 6 in-built sensor, 4 ext. sensor port (60+ sensor available), connectivity port micro USB, 90.2 x 90.2 x 20mm(LXWxH), 120gm.
- Diode laser : Wavelength 635nm, Operating voltage 5V DC, Optical power 3-5mW.
- Optical bench : Length – 1 mtr. with Scale, 4 point levelling. Material Aluminium or MS.
- Transversal slider : 25 – 0 – 25mm, LC 0.01mm.
- Polarizer : Angle (0 ± 90°), LC 1°, Aperture 21mm, Frame 130mm, Rod 10 mm.
- Half wave plate : Angle (0 ± 90°), LC 1°, Aperture 21mm, Frame 130mm, Rod 10mm.
- Fixed slider : Base width 50mm, H 115mm.
| S.No. | Item Name | Quantity |
|---|---|---|
| 1 | Transverse Slider | 1 |
| 2 | Fixed Slider | 4 |
| 3 | Optical Bench with Levelling | 1 |
| 4 | Pen Drive for Software | 1 |
| 5 | Half Wave Plate | 1 |
| 6 | Light Sensor Holder with Rod | 1 |
| 7 | Diode Laser (Red) with Rod | 1 |
| 8 | Fourier Light Sensor Multi Range | 1 |
| 9 | Einstein Labmate with Micro USB Cable | 1 |
| 10 | Fourier Sensor Cable | 1 |
| 11 | Adaptor 5V/1A | 1 |
| 12 | Polarizer/Analyser | 1 |
Note : The standard supply is the Hexagonal Optical Bench (MS). To request the Triangle Optical Bench (Aluminium Extrusion), please specify in your request.
