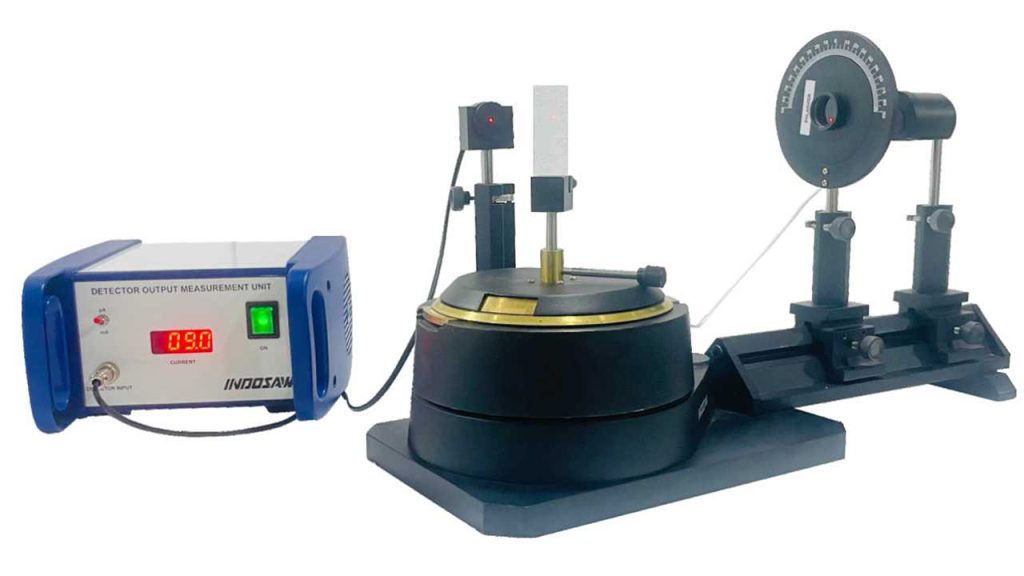

THE BREWSTER'S ANGLE APPARATUS

Item Code : SK221

Principle and Working:

Brewster angle states a simple relation between the angle of polarization and the refractive index of the medium. It has been observed experimentally that the reflected and refracted rays are at right angles to each other. when the light is incident at polarizing angle. When a light beam strikes a transparent substance, it can be separated into two light components: orthogonal (S) and parallel (P) components. Brewster discovered that the reflection coefficient of the parallel component goes to zero at a specific angle of incidence β, often known as the Brewster angle. The direction of the transmitted and reflected beams is orthogonal at this angle.

r = 900 – ip



From Snell’s law, sin ip / sin r = μ



Here m is the refractive index of the medium (glass) Substituting for r, we get,

sin ip / sin (900 – i)p = μ



So, sin ip / cos ip = μ



Thus, μ = tan ip
  • Compact and well-thought-out design.
  • A high-quality polarizer.
  • A photo detector that is sensitive.
  • Rotation measurement accuracy.
  • To measure and plot the graph-reflectivity versus angle of incidence.
  • To find the Brewster’s angle of glass plate and determination of refractive index
  • Optical Bench: Length 300mm (Triangular).
  • Polarizer: Angle (0 ± 90°), LC 1°, Aperture 21mm, Frame 130mm, Rod 10mm.
  • Diode Laser: Red 650nm.
  • Detector output measurement unit: Measures current range 0-199mA/mA, input power 230V/50Hz, display 3 digit 7 segment display.
  • Detector: Pin hole with silicon photo detector.
  • Goniometer: Least count 20 second.
  • Main scale: Brass, dia. 175mm, 0 – 360°, 1 MSD 1/3°.
  • Objective: Achromatic lens, F = 178mm, Ø 32mm.
  • Slit: German silver with knurled screw.
  • Reticle: 90° cross etched on glass, Ø 21mm.
  • Eyepiece: 15x, Ramsden eyepiece.
  • Vernier: Brass, 4 verniers, (L x W) 60 x 48mm. (Top vernier graduated, vernier bottom 60° graduated).
  • Base: Dia. 220mm, aluminum casting.
S.No.Item NameSK221
1Goniometer with detector mount1
2Optical bench1
3Fixed saddle2
4Polarizer1
5Glass slide (pack of 50)1
6Diode laser (red), 650 nm1
7Power adapter1
8Detector output measurement unit1
9Detector1
