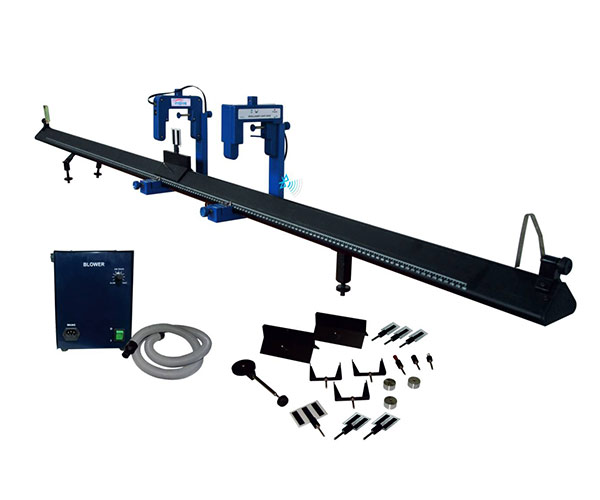

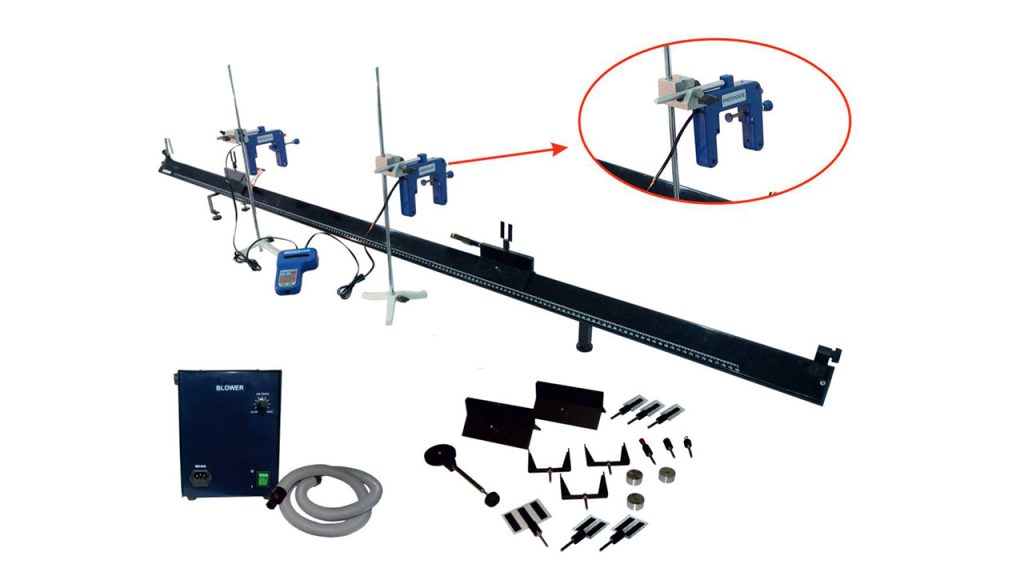

Linear Air Track with Digital Timer
Item Code : SK099
Principle and Working:
The triangular-section track is made of aluminum with perforations. An inlet cover is provided at one end, which is connected to a hose from an air blower. The gliders move on an air cushion, thereby minimizing friction. The apparatus is used to perform experiments that investigate the laws of motion, speed, acceleration, and momentum. A digital timer with two photogates, along with various accessories, is used to conduct all experiments.
Read More
- Accessories simply plug into the ends & top of vehicle.
- Facilitates the study of mechanics.
- Linear motion under frictionless condition.
- Light gate with sensitivity-adjustment knob.
- Precise and accurate data.
- Many other experiments can also be performed with the same wireless light gates with built-in-timer.
- Data can be collected on PC, tablets or smartphones.
- To study the linear motion under virtually frictionless conditions.
- To study the elastic and inelastic collision.
- To study the concept of velocity.
- To study the concept of accelerations.
- To study the conservation of momentum & energy.
- To study the dependency of mass ratio to kinetic energy.
- Linear air track : Triangular section, Aluminium alloy, Length 200cm, Hole two rows both side, 1mm dia. 3 Support feet, Very low frictionless surface.
- Blower : Plastic, 35 mm outlet dia, Operating voltage 220 V AC, 50 Hz, Air speed regulator switch, 30 ± 1 ms-1, ON/OFF switch, Dimension 230 x 185 x 250mm (L x W x H), Suppled with shrinkable plastic pipe.
- Digital Timer & Display :
- 2 line LCD
- Type Micro controller based
- Time Photogate resolution 0.1 milli second
- Mode Time
- Speed & Acceleration
- Photogate 2 Nos.
- Interface USB
- Operating voltage 5V DC
- Photogate detector Infra-Red
- Micro controller based and built-in test functions.
| S.No. | Item Name | SK099 |
|---|---|---|
| 1 | Plug with Band Holder | 3 |
| 2 | 3b Picket with Plug | 1 |
| 3 | Plug with WAX | 1 |
| 4 | Plug with Pin | 1 |
| 5 | Plug with Strip | 3 |
| 6 | Plug with Hook | 1 |
| 7 | Plug with Pulley | 1 |
| 8 | Weight 50g | 4 |
| 9 | 2b Picket with Plug | 2 |
| 10 | Vehicle Assembly 200g | 2 |
| 11 | Rubber Band | 10 |
| 12 | Digital Timer | 1 |
| 13 | Adaptor 5V/1A | 1 |
| 14 | Photogate | 2 |
| 15 | Sensor Rod | 2 |
| 16 | Sensor Wire | 2 |
| 17 | Linear Air Track Triangular | 1 |
| 18 | Allen Key 5/32” | 1 |
| 19 | Barrier Assembly | 2 |
| 20 | MS Rod 40cm | 2 |
| 21 | Tripod Base | 2 |
| 22 | Electric Blower | 1 |
| 23 | Main Power Cord | 1 |
| 24 | Plastic Box | 1 |
| 25 | Boss Head Square | 2 |
