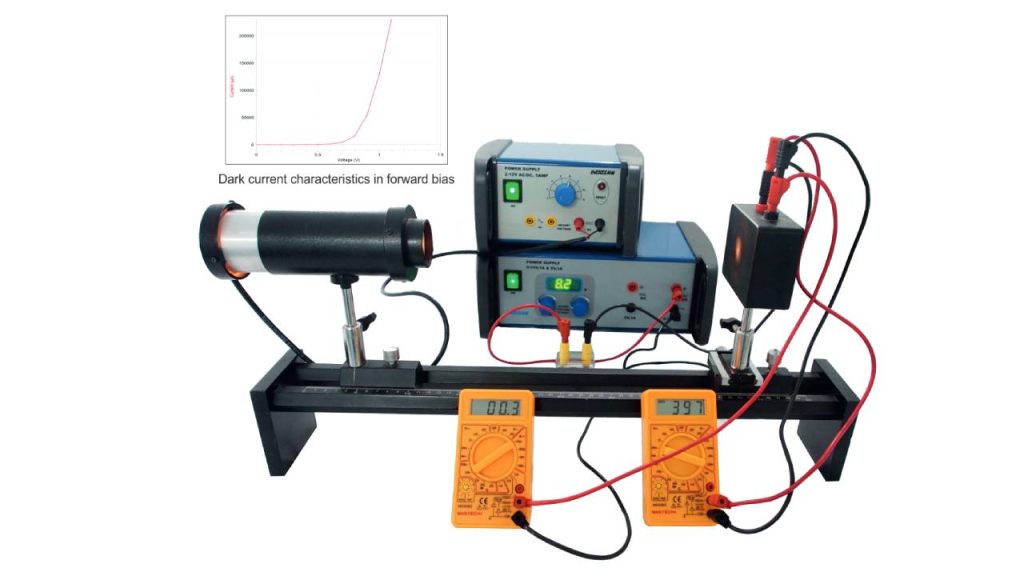

Pin Diode Characteristics
Item Code : SK060
Principle and Working:
The BPW34 is a high-speed, highly sensitive PIN photodiode in a compact flat plastic package. Its clear epoxy makes it responsive to both visible and infrared light. The large active area and flat casing ensure high sensitivity over a wide viewing angle.
In this setup, the photodiode’s behaviour under forward and reverse bias is measured for fixed irradiation. The variation of photo current with different light intensities is also studied.
Read More
- Highly sensitive photo-diode.
- Easy set-up.
- Multipurpose power supply with digital display.
- Forward and reverse bias characteristics of BPW34 PIN Photodiode for fixed irradiation.
- Dependence of photo current on light intensity.
- Optical bench : Length – 1 mtr. with Scale, 4 point levelling. Material Aluminium or MS.
- Transversal slider : 25 – 0 – 25mm, LC 0.01mm.
- Fixed slider : Base width 50mm, H 115mm.
- Power supply : 2,3,4,5,6,8,10 & 12VAC full wave rectified, unsmoothed & unregulated D.C, Resettable thermal trip, Input 230 V AC,50 Hz.
- Mercury light : Starting Voltage 470 Volts, Input Voltage 220 Source volts, 50 Hz, Lamp House 250 x 100mm (L x dia.) Aperture dia 25mm, Mercury Lamp 125W.
- Electrometer : Input Impedance >1013 W, Input Current <0.5pA, Output Voltage upto +10V, Output Current 5mA, (Short Circuit Protected), Output impedance <1W, Supply Voltage 12V AC.
- Photocell : Photocell Cs, vacuum tube, Output 4mm safety socket, Mounting rod 10mm dia.
| S.No. | Item Name | SK060 |
|---|---|---|
| 1 | Optical Bench Hexagonal 1/2 mtr. | 1 |
| 2 | Digital Multimeter | 2 |
| 3 | Power Supply 2-12V AC/DC | 1 |
| 4 | Fixed Slider (Hexagonal) | 2 |
| 5 | Transverse Slider (Hexagonal) | 1 |
| 6 | Lamp Source (Round Housing) | 1 |
| 7 | Pin Hole Photo detector | 1 |
| 8 | Flexible Plug Lead 50cm (Black) | 2 |
| 9 | Flexible Plug Lead 100cm (Black) | 1 |
| 10 | Flexible Plug Lead 50cm (Red) | 2 |
| 11 | Flexible Plug Lead 100cm (Red) | 1 |
| 12 | Power Supply 0-16V DC, 1A & 5V DC, 1A | 1 |
| 13 | Resistance Module 10 CHM/50W | 1 |
| 14 | Power Cord (Main Lead) | 2 |
