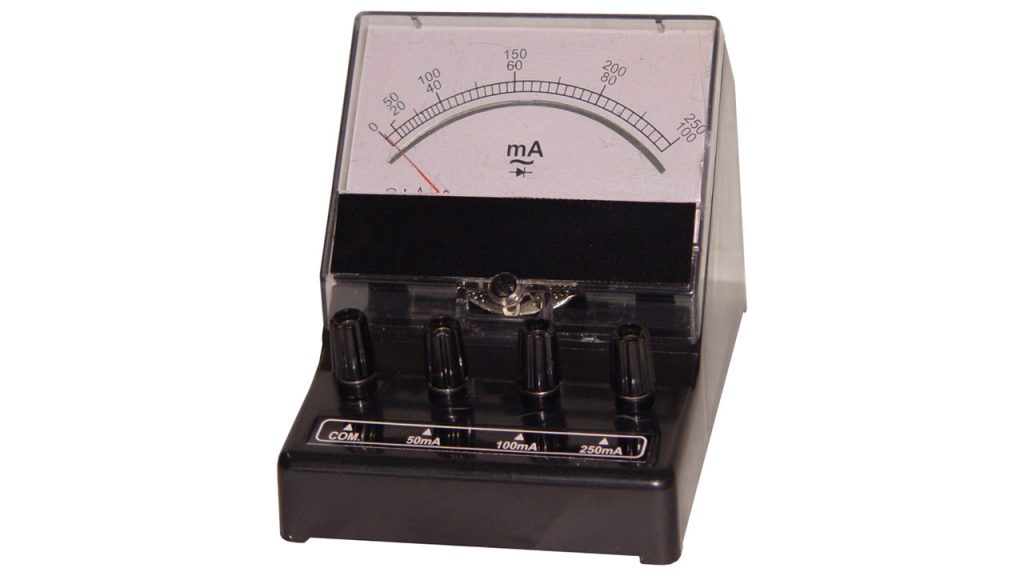

METER RECTANGULAR
SE590 – Ammeter DC 0-1Amp
SE592 – Ammeter Double Range DC 0-1/5 Amp
SE595 – Milliammeter DC 0-100mA
SE599 – Voltmeter DC 0-10V
SA548 – Millivoltmeter DC 0-50mV
SA550 – Galvanometer DC 30-0-30 (20µA/Div)
| Case | : Clear Acrylic front cover with ABS plastic box |
| Accuracy Class | : ± 2 FSD |
| Scale Length | : 85mm (approx) with knife edge pointed and anti parallax mirror scale. |
| Desk Stand | : Front Terminal unbreakable ABS plastic moulded, Meters moving coil dc. |
| Size | : 100 x 100 x 140 mm approx. |
METER RECTANGULAR
SA587 – Ammeter 0-3Amp
SW258 – Voltmeter 0-5V
| Case | : Clear Acrylic front cover with ABS plastic box. |
| Accuracy Class | : ± 2 FSD. |
| Scale Length | : 85mm (approx) with knife edge pointer and anti parallax mirror scale. |
| Desk Stand | : Front Terminal unbreakable ABS plastic moulded. Meters moving coil type AC/DC. |
