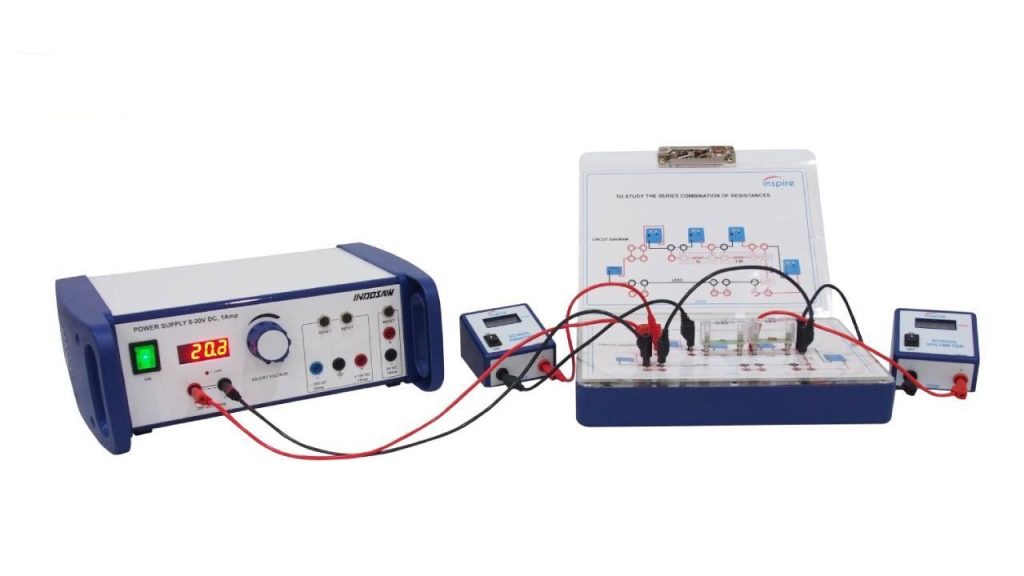

Electronic Plugin Kit
Item Code : SH295
The substantial benefit of plug in kit is that students construct the working circuit, they can also see the corresponding circuit diagram. This helps students link theory to practice and simplify the process of learning electricity and electronics.
This kit helps students of many disciplines to apply electrical & electronics theory to practice. Covers wide spectrum of topics : from simple electricity to advanced transistor characteristics.
- Electronic plug-in kit is a comprehensive set of components for performing experiments in Analog and Digital Electronics.

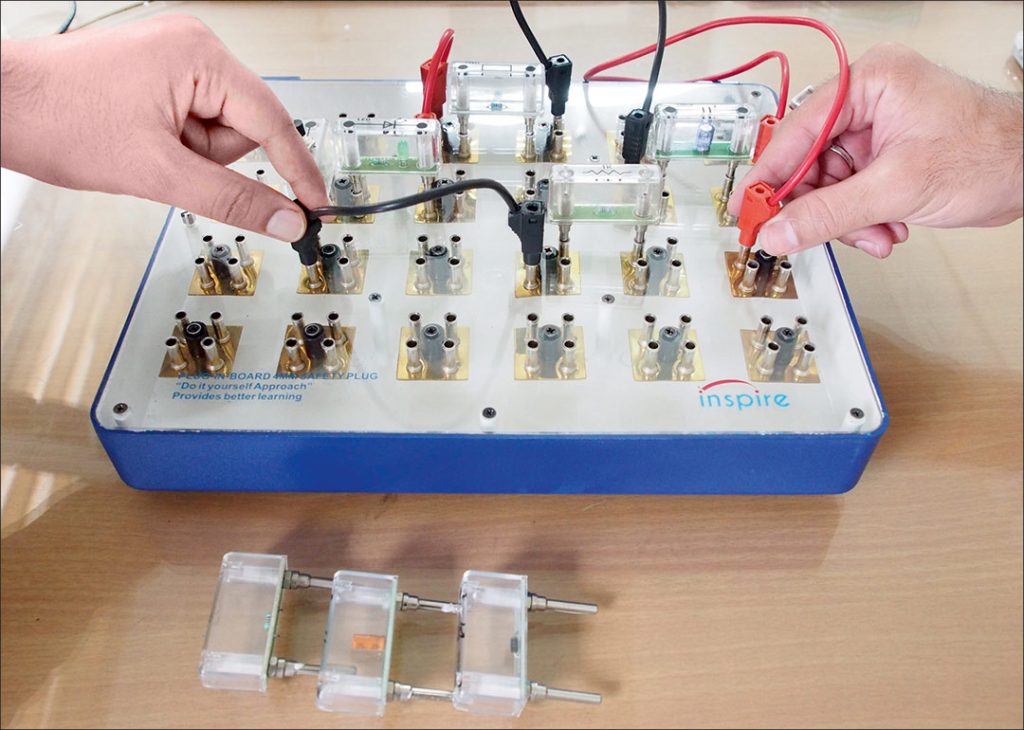

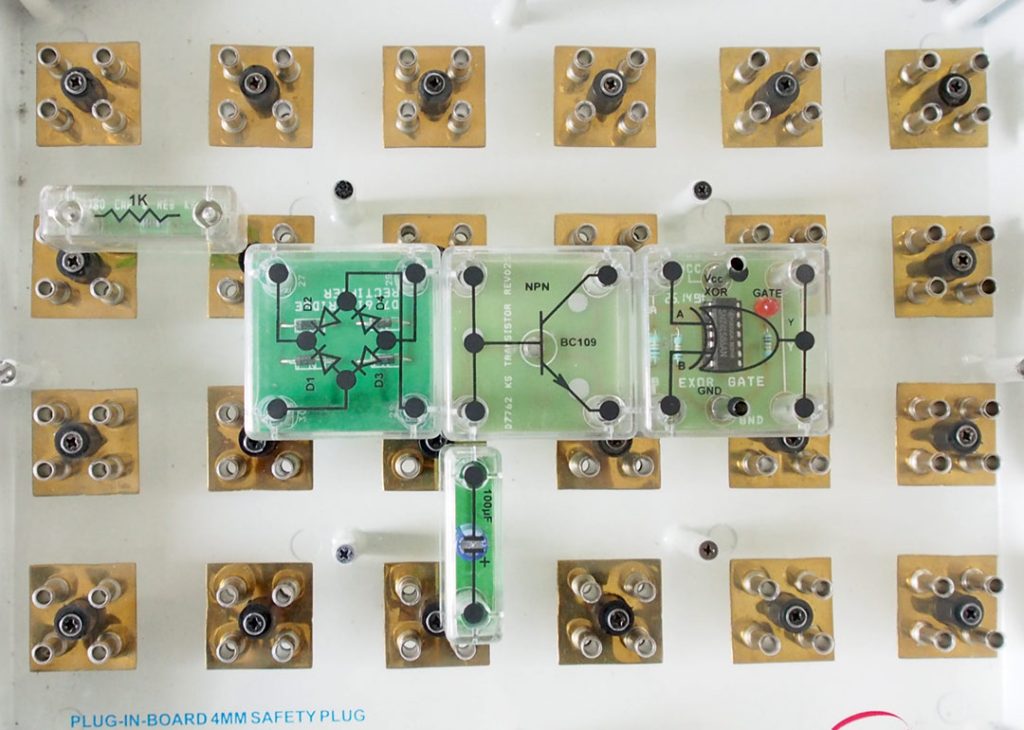

- The plug-in modules include both passive and active electronic components with contacts formed by 4-mm plugs.
- It is a “Do it yourself approach”.
- Modular system is encourages thinking and learning process while student approach for self-designed circuits.
- The freedom to experiment is backed up by formal experiment literature.
- It leads to in-depth knowledge and eventually to the kind of practical skills.
- It provides you best electrical safety while performing an experiment.
Curriculum Related Experiments
Exp-1: Diode characteristics of transistor junctions.
Exp-2: Recording the characteristics of a transistor.
Exp-3: Recording the characteristics of a field-effect transistor.
Exp-4: To study half wave and full wave (bridge) rectifier.
Exp-5: To study capacitor filter effect in power supply.
Exp-6: To study unregulated and regulated power supply.
Exp-7: Recording the current-voltage characteristics of diodes.
Exp-8: Recording the current-voltage characteristics of zener diodes.
Exp-9: Recording the current-voltage characteristics of LED.
Exp-10: AND, OR, XOR, NOT, NAND and NOR operations.
Exp-11: De Morgan’s laws.
Exp-12: Logic operation using three and four variables.
Exp-13: To study MOSFET characteristics.
Exp-14: To study characteristics of TRIAC.
Exp-15: To Study Ohm’s Law.
Exp-16: To Study Kirchhoff’s Law.
Exp-17: To Study Series & Parallel Effect of Resistance.
Exp-18: To Study Resistances As A Voltage Divider.
Exp-19: To Study LDR Characteristics.
Exp-20: To Study Thermistor Characteristics.
Exp-21: To study the R-C Circuit.
Exp-22: To study the L-R Circuit.
Exp-23: To study the L-C-R Circuit.
Exp-24: To study the Clipper and Clamper Circuit.
Exp-25: To study the Charging and Discharging of a Capacitor.
| Cat. No. | Item Name | Qty. |
| CB530 | AND Gate Module (Single Gate) | 2 |
| SEB12 | Bridge Rectifier Module | 1 |
| CB540 | Piezo Buzzer Module | 1 |
| SEB14 | Capacitor Module 0.01μF | 3 |
| SEB72 | Capacitor Module 0.047μF | 2 |
| SEB15 | Capacitor Module 0.1μF | 3 |
| SEB16 | Capacitor Module 0.47μF | 3 |
| SEB73 | Capacitor Module 10μF | 3 |
| SEB74 | Capacitor Module 100μF | 1 |
| SEB17 | Capacitor Module 1000μF | 1 |
| SEB53 | Changeover Switch Module | 1 |
| C4149 | Comp. Module LED & Resistance | 1 |
| SEB24 | Diode Module 1N4007 | 1 |
| CB534 | Ex-OR Gate Module (Single Gate) | 2 |
| SEB26 | Inductor Module 30mH | 2 |
| SEB75 | Inductor Module 60mH | 1 |
| SEB27 | Inductor Module 225 mH | 1 |
| SEB28 | JFET Module | 1 |
| SEB30 | LED Module | 1 |
| CB541 | Lamp in Holder | 1 |
| CB539 | Light Sensor (LDR) Module | 1 |
| SEB31 | MOSFET Module | 1 |
| CB531 | NAND Gate Module (Single Gate) | 1 |
| CB535 | NOR Gate Module (Single Gate) | 1 |
| CB532 | NOT Gate Module (Single Gate) | 2 |
| CB533 | OR Gate Module (Single Gate) | 1 |
| SEB38 | Push Button Module | 1 |
| —— | Plug-in-board | 1 |
| SEC06 | Regulator Module LM7805 | 1 |
| SEB41 | Resistor Module 100Ω | 1 |
| SEB43 | Resistor Module 330Ω | 1 |
| SEB46 | Resistor Module 1kΩ | 2 |
| SEB47 | Resistor Module 3.3kΩ | 3 |
| SEB76 | Resistor Module 4.7kΩ | 1 |
| SEB44 | Resistor Module 10kΩ | 5 |
| SEB45 | Resistor Module 15kΩ | 2 |
| SEB78 | Resistor Module 27kΩ | 2 |
| SEB88 | Resistor Module 33kΩ | 2 |
| SEB79 | Resistor Module 75kΩ | 1 |
| SEB40 | Resistor Module 100kΩ | 1 |
| SEB42 | Resistor Module 330kΩ | 1 |
| SEB80 | Resistor Module 470kΩ | 1 |
| SEB77 | Resistor Module 6.2 kΩ | 1 |
| CB542 | Reed Switch Module | 1 |
| SEC06 | Regulator Module | 1 |
| SEB53 | Switch Module | 2 |
| —- | Set of Template sheets | 1 |
| CB538 | Thermistor Module | 1 |
| SEB84 | Transistor Module 2N2222 | 2 |
| SEB86 | Transistor Module BC109 | 2 |
| SEB57 | TRIAC Module | 1 |
| Sw926 | Power Supply 0-20V, 1A | 2 |
| CB536 | Variable Resistor 1kΩ | 1 |
| CB537 | Variable Resistor 10kΩ | 1 |
| SEB81 | Variable Resistor 1MΩ | 1 |
| SEB13 | Zener Diode Module 5.1V | 1 |
