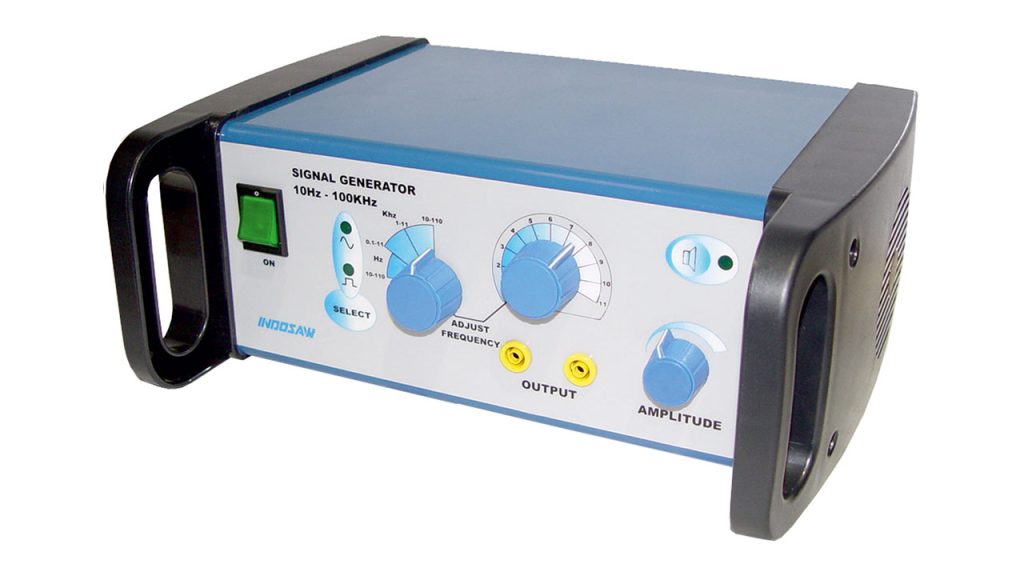

Signal Generator
Item Code : SE040
A low distortion signal generator with four decade ranges selectable by rotary switch. Sine waveform and square waveform selectable by membrane switch with LED indicator. A built-in speaker is provided for audible frequencies and is selectable by membrane switch.
| Parameters | Remarks |
| Range | 10Hz to 110 KHz in four decade ranges. |
| Wave form | Sine & Square. |
| Output | Continuously variable from 0-7V p-p,5W. |
| Working Voltage | 230V AC, 50Hz (Cat. No. SW925). |
| 110V AC, 50/60Hz (Cat. No. SN908). |
